SpineMED Ultra

Home SpineMED® SYSTEMS SpineMED Ultra

Model Identification:

  • S200U – Ultra lumbar base system which can be configured to operate on 120V or 240V
  • S200UC – Ultra cervical unit, which is an attachment to the S200U Ultra Table, and is powered with 24VDC from the S200U Ultra table unit

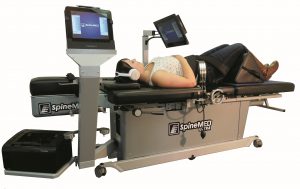

SpineMED® Ultra System: The SpineMED® System provides the patient with the most clinically efficient decompression session available.

Touch Screen Computer
allows for easy operation

Printer
prints patient reports and documentation

UPS System
protects sensitive electronics and provides backup battery power

Casters
allow easy mobility

Built-in Modem
allows for remote updates and system checks

Cervical Unit
decompresses injured cervical discs

Cervical Restraints
comfortably secure patient for distraction

Cervical Tilt
adjusts to target specific spinal segments

Headphones
provide audio for education materials or relaxation

Upper Restraint
anchors patient’s torso to stationary portion of the table

Patented Pelvic Restraints
secures patient’s pelvis to moveable section of the table

Patented Pelvic Tilt
adjusts to target specific lumbar pathology

Patient Safety Switch
puts patient in control of the session

Knee Bolster
adjusts to increase patient comfort

Drive Mechanism
high speed electric actuator—replaces old style traction box

Infrared Heat & Air Bladder
adds to patient comfort and relaxation

Patient Monitor
allows the patient to view the progress of the current treatment, or to view video through the incorporated DVD Player

CD/DVD Player
provides relaxation music or will display educational or entertainment video

SpineMED® S200U/S200UC Ultra Specifications

Dimensions: 92” (234 cm) Long x 48” (122 cm) wide x 49” (125 cm) high (length includes cervical unit)

Total length required for proper lumbar/cervical operation is 106” (270 cm)

Weight: 495 lbs. (224 Kgs) (cervical attached)

Power: 110-120/220-240 Volts AC; 10 Amps @120VAC or 8 Amps @240VAC

Instructions for use

English FrenchHungarianGermanRomanianPortugueseUkrainianModelDate
Current v2.2 v2.2v2.2v2.2v2.2v2.2v2.2S200U&UC2024-12-18
v2.1v2.1v2.1v2.1v2.1S200U&UC2024-07-22
v2.0v2.0v2.0v2.0v2.0S200U&UC2023-12-22
v1.9v1.9v1.9v1.9v1.9S200U&UC2023-07-07
v1.8v1.8v1.8v1.8v1.8S200U&UC2023-03-15
v1.7v1.7v1.7v1.7v1.7S200U&UC2023-01-03
v1.6v1.6v1.6S200U&UC2021-12-15
v1.5v1.5v1.5S200U&UC2020-07-16
v1.4v1.4v1.4S200U&UC2018-03-22
v1.3S200U&UC2018-02-08
v1.2S200U&UC2017-08-30
v1.1S200U&UC2017-03-31
v1.0S200U&UC2016-10-06
