SpineMED® Express

Home SpineMED® SYSTEMS SpineMED® Express

Model Identification:

  • S200E – Express lumbar only system which can be configured to operate on 120V or 240V
  • S200EC – Express lumbar and cervical system integrated into one device which can be configured to operate on 120V or 240V

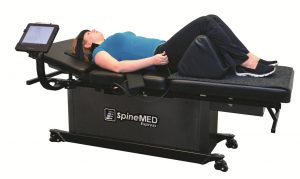

SpineMED® Express System: The SpineMED® System provides the patient with the most clinically efficient decompression session available.

Patented Pelvic Restraints
secures patient’s pelvis to moveable section of the table

Patented Pelvic Tilt
adjusts to target specific lumbar pathology

Patient Safety Switch
puts patient in control of the session

Cervical Tilt
adjusts to target specific spinal segments

Cervical Restraints
comfortably secure patient for distraction

Cervical Unit
decompresses injured cervical discs

Upper Restraint
anchors patient’s torso to stationary portion of the table

Drive Mechanism
high speed electric actuator—replaces old style traction box

Knee Bolster
increase patient comfort

Internet Connectivity
allows for remote updates and system checks

Casters
allow easy mobility

SpineMED® S200EC Express Specifications

Dimensions: 77” (196 cm) Long x 32 ¼” (82 cm) wide x 25” (63.5 cm) high (length includes cervical unit)

Total length required for proper lumbar/cervical operation is 88” (224 cm)

Weight: 435 lbs. (197 Kgs) (cervical attached)

Power: 110-120/220-240 Volts AC; 10 Amps @120VAC or 8 Amps @240VAC

Instructions for use

English FrenchGermanVietnamesePortugueseSpanishModelDate
Current V2.2V2.2V2.2V2.2V2.2V2.2S200E&EC2024-12-18
v2.1v2.1v2.1V2.1S200E&EC2023-12-22
v2.0v2.0V2.0S200E&EC2023-07-07
v1.9v1.9v1.9S200E&EC2023-03-15
v1.8v1.8v1.8S200E&EC2022-04-29
v1.7v1.7S200E&EC2020-07-16
v1.6v1.6S200E&EC2018-03-22
v1.5v1.5S200E&EC2018-02-08
v1.4v1.4S200E&EC2017-08-30
v1.3v1.3S200E&EC2017-03-31
v1.2v1.2S200E&EC2015-09-24
v1.1v1.1S200E&EC2014-07-28
