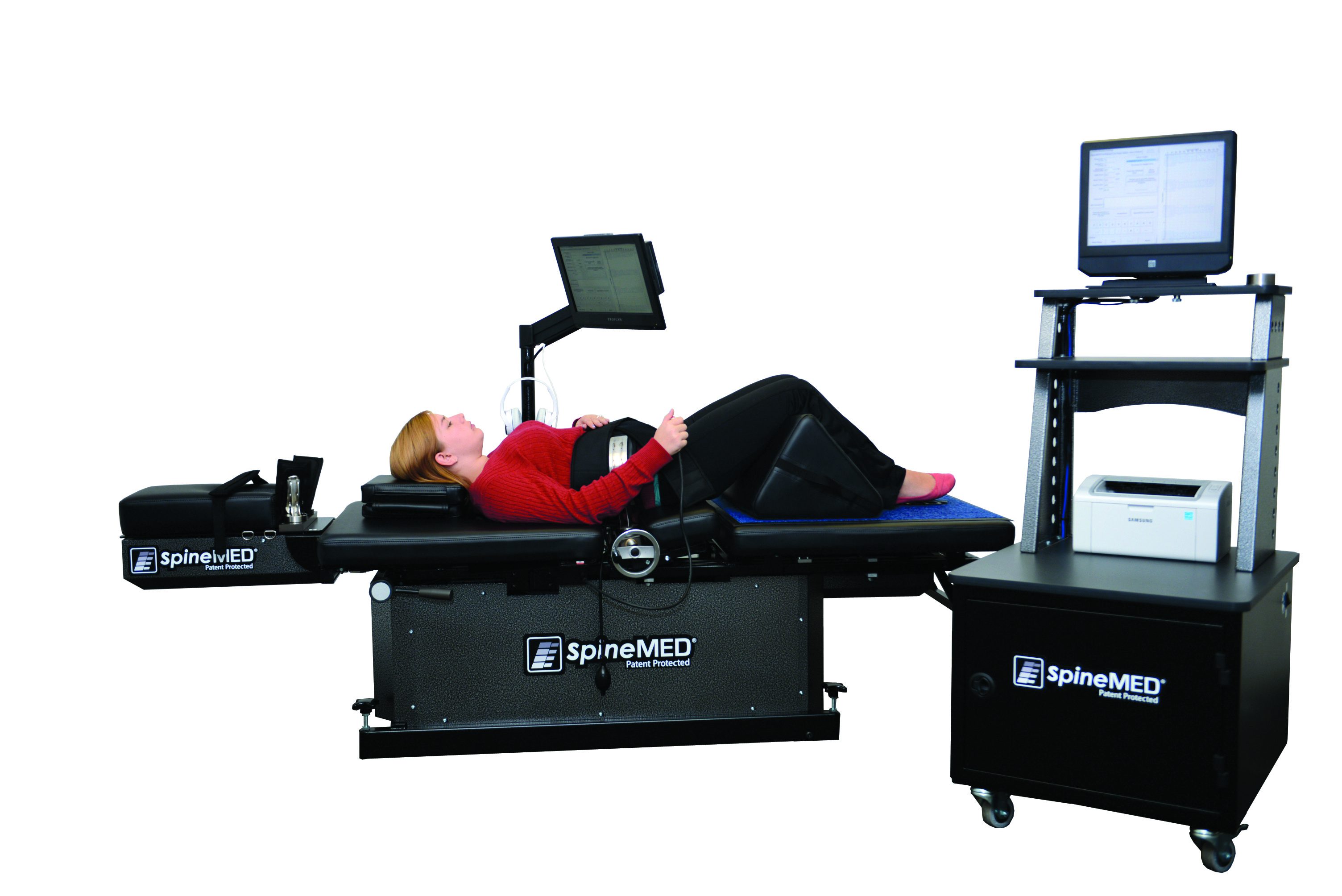

S200B – SpineMED Professional Base Lumbar only system includes a Console and Table unit.
S200B – console: Console is either 120V or 240V (factory configurable)
S200B – table – Table is powered by Console unit with 24VDC power and can only function when connected to the console unit
S200C – Cervical unit that attaches to S200B Table unit, and is powered by the Table with 24VDC which originates from the console unit.

Touch Screen Computer
allows for easy operation

Printer
prints patient reports and documentation

UPS System
protects sensitive electronics and provides backup battery power

Casters
allow easy mobility

Built-in Modem
allows for remote updates and system checks

Cervical Unit
decompresses injured cervical discs

Cervical Restraints
comfortably secure patient for distraction

Cervical Tilt
adjusts to target specific spinal segments

Headphones
provide audio for education materials or relaxation

Upper Restraint
anchors patient’s torso to stationary portion

Patented Pelvic Restraints
secures patient’s pelvis to moveable section of the table

Patented Pelvic Tilt
adjusts to target specific lumbar pathology

Patient Safety Switch
puts patient in control of the session

Knee Bolster
adjusts to increase patient comfort

Drive Mechanism
high speed electric actuator—replaces old style traction box

Infrared Heat & Air Bladder
adds to patient comfort and relaxation

Patient Monitor
allows the patient to view the progress of the current treatment, or to view video through the incorporated DVD Player

CD/DVD Player
provides relaxation music or will display educational or entertainment video

Table Dimensions: Lumbar only: 71” (180 cm) Long x 33” (86 cm) wide x 26” (66 cm) high

Table Dimensions: Lumbar/Cervical: 93” (236 cm) Long x 33” (86 cm) wide x 26” (66 cm) high

Total length of table space required for proper lumbar/cervical operation is 108” (275 cm)

Table Weight: 300 lbs. (136 Kgs) (cervical attached)

Console Dimensions: 25” (63.5 cm) Deep x 29” (73.6 cm) Wide x 64” (162.5 cm) High

Console Weight: 230 Lbs. (104 Kgs)

Power: 110-120/220-240 Volts AC; 10 Amps @120VAC or 8 Amps @240VAC
